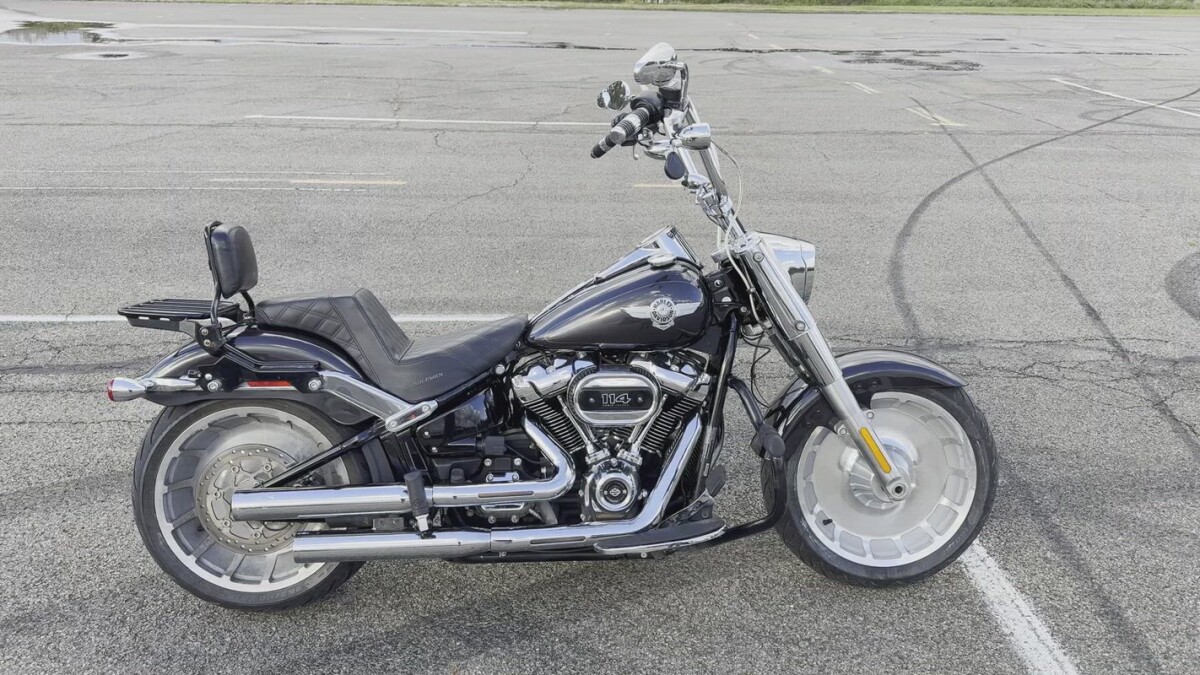

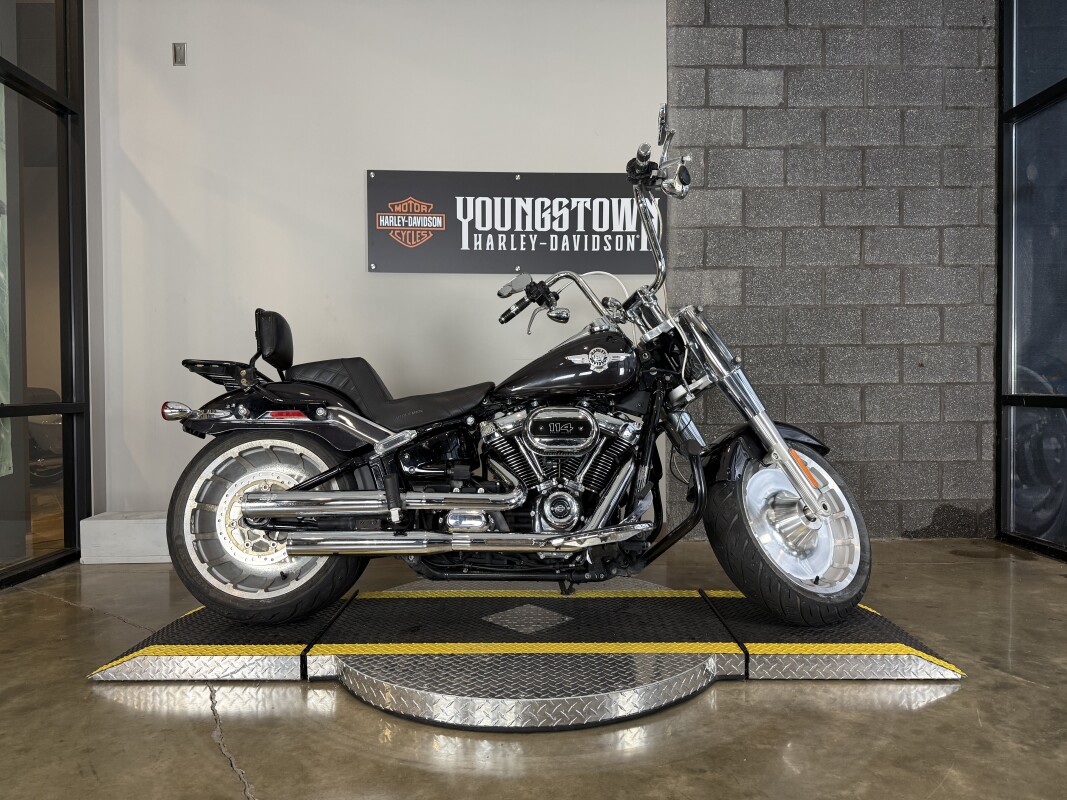

‹ Home › Inventory › 2021 Harley-Davidson® Fat Boy® 114 FLFBS

The original fat custom icon. Now lighter than the previous generation Fat Boy 114, and slinging torque from a Milwaukee-Eight®114. You’ll feel the difference the instant you crack the throttle.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.6 in
- Ground clearance:

  4.5 in
- Trail:

  4.1 in
- Wheelbase:

  65.6 in
- Tires, front specifications:

  160/60R18,70V,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  670 lbs
- Weight, in running order:

  699 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  114.3 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.00 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  129 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
